Pharmaceutical labeling machine

  • Round Medicine Bottle Labeling Machine

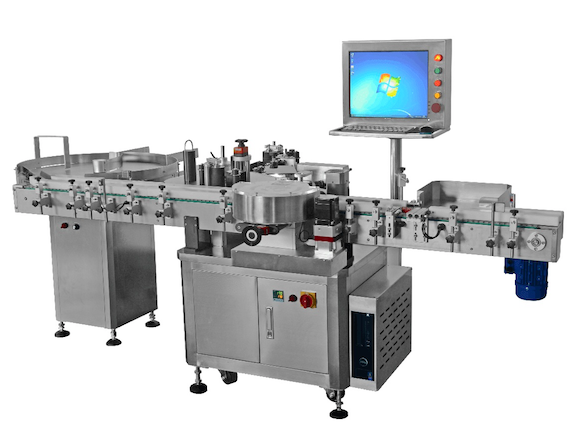

Round Medicine Bottle Labeling Machine

Round Medicine Bottle Labeling Machine

Performance Features

1. Suitable for fixed-point positioning and labeling of round bottles.
2. The rubber wheel differential speed separation mechanism can be steplessly adjusted and separated into any distance. There is no need to change the specification parts when changing the product.
3. Use imported well-known brand servo motor, fast speed, high precision and good stability.
4. The rubber wheel rolling and sticking mechanism has a long service life, and the label positioning accuracy is high when positioning and labeling.
5. High labeling accuracy, labeling accuracy ±0.5mm

Technical Parameters

Model C-200
Labeling Speed 0- 120bottles/minute

Label Length

25-200mm

Power Supply 220V/50HZ
Total Power 1.5KW
Machine Size

L2710*W1325*H1390mm

Compressed Air Pressure

0.5Mpa

Labeling Precision +/-0.5mm
Weight 400KG
